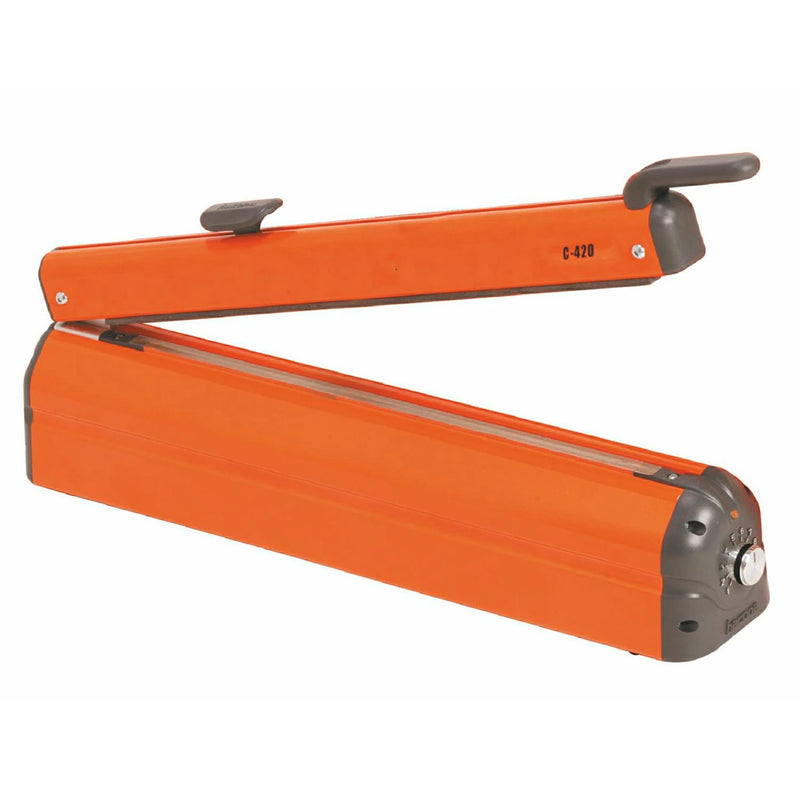

Hacona C-420 Tabletop Impulse Sealer

Description

Hacona table top heat sealers are very easy to operate and require minimal working space. They are suitable for a wide range of packaging applications including production, order fulfillment and office environments. Simply connect to a 230V power supply and they are ready to go.

Technical Data:

  • Max Sealing Length: 420mm
  • Seal Width: 2.5mm
  • Max Sealable Film Width: 400mm
  • IP Protection Class: IP23
  • Electrical Connection: 230V/50-60Hz
  • Max Power Consumption: 248W
  • Machine Size (WxDxH): 630x95x300mm
  • Machine Weight: 4.4kg

All Hacona C-Type heat sealers work on the impulse sealing principle. The sealing wire only gets hot when the sealing bar is closed, meaning maximum energy-saving with maximum safety.

Ultra-strong magnesium aluminium body: The machine body and sealing bar of each Hacona C-Type Impulse Heat Sealer is made of ultra-strong magnesium aluminium. This technology assures a super-strong base and an absolutely flat surface for the specially designed impulse sealing wire. Hacona also guarantee the specially designed aluminium ribs inside the frame ensuring proper and fast cooling of the sealing wires after the sealing cycle is finished.

Machine Surface Finish: Orange powder-coated for general purpose. Can be used in all kinds of industry.



Download this Hacona Brochure to find out more!

Hacona C-420 Tabletop Impulse Sealer

Product form

Free pickup in our shop(s)

Icon for verifiedBuy with confidence from an Irish Company!

We are a 100% Irish Company located in Dublin 10. If you're not sure what you need, phone us at 01-4507272 or call into us at Unit 1b Kylemore Industrial Estate, Killeen Road, Dublin 10, D10VN25.

Icon for questionFrequently Asked Questions about our Heat Sealers


FREQUENTLY ASKED QUESTIONS ABOUT HACONA HEAT SEALERS





WHAT CAN I SEAL WITH A HACONA HEAT SEALER?

Flexible plastic film and bags such as PE, PP, PA, PVC and other thin laminate films can be sealed. PE film up to two layers of 200 microns can be sealed.



ARE HACONA HEAT SEALERS AVAILABLE IN DIFFERENT COLOURS?

Due to the high temperatures of the sealing bar that is required, for safety, Hacona Heat Sealers are an eye-catching orange powder coated extruded aluminium for general use.

A silver-coloured anodised aluminium model is available for food- and pharma-related industries although it should be noted that the metal is not acid-proof.



HOW LARGE A SEAL DOES A HACONA HEAT SEALER PRODUCE?

The C-Type Sealers create a seal of 2.5mm.

The S-Type Sealers create a seal of 5mm.



WHAT TEMPERATURE DOES A HEAT SEALER OPERATE AT?

Heat sealers are used to weld together two layers of thermoplastic. Thermoplastics are heat-reactive and tend to melt and seal at roughly 140 degrees which means a heat sealer must press together the two layers at this temperature to seal them properly.



CAN A HACONA HEAT SEALER OVERHEAT?

All Hacona Heat Sealers work on the Impulse Sealing Principle. The sealing wire  will only get hot when the sealing bar is closed during the sealing process. After the sealing process, the temperature of the sealing wire will automatically diminish. This reduces the possibility of a Hacona Heat Sealer overheating.



HOW LONG DOES IT TAKE TO HEAT SEAL A PRODUCT?

This is determined by the thickness and type of material used, but often it takes less than two seconds to fully seal.



DOES THE HEAT SEALER NEED TO BE THE SIZE OF MY PRODUCT?

Hacona Heat Sealers use bar sealer technology. The sealing bar should be larger than the product being bagged. A complete seal will not be reached if the bar is shorter than the product.



WHAT CAN NOT BE PACKAGING USING A HACONA HEAT SEALER?

The sealing wire of a Hacona Heat Sealer can reach high temperatures.  In order to avoid danger to the operator and the machine, the following should not come in contact with a Hacona Heat Sealer: liquids, wet products and flammable materials.



I ALREADY HAVE A HACONA HEAT SEALER - CAN I GET SPARE PARTS?

Yes. Box Depot has spare parts available for Hacona Heat Sealers. Please contact us at 01-4507272 to discuss your requirements.



Icon for questionWhen will I receive my order?

Next Working Day Delivery does not apply to our Hacona Heat Sealer products. Please contact us at 01-4507272 to confirm when you will receive your order.

Description

Hacona table top heat sealers are very easy to operate and require minimal working space. They are suitable for a wide range of packaging applications including production, order fulfillment and office environments. Simply connect to a 230V power supply and they are ready to go.

Technical Data:

  • Max Sealing Length: 420mm
  • Seal Width: 2.5mm
  • Max Sealable Film Width: 400mm
  • IP Protection Class: IP23
  • Electrical Connection: 230V/50-60Hz
  • Max Power Consumption: 248W
  • Machine Size (WxDxH): 630x95x300mm
  • Machine Weight: 4.4kg

All Hacona C-Type heat sealers work on the impulse sealing principle. The sealing wire only gets hot when the sealing bar is closed, meaning maximum energy-saving with maximum safety.

Ultra-strong magnesium aluminium body: The machine body and sealing bar of each Hacona C-Type Impulse Heat Sealer is made of ultra-strong magnesium aluminium. This technology assures a super-strong base and an absolutely flat surface for the specially designed impulse sealing wire. Hacona also guarantee the specially designed aluminium ribs inside the frame ensuring proper and fast cooling of the sealing wires after the sealing cycle is finished.

Machine Surface Finish: Orange powder-coated for general purpose. Can be used in all kinds of industry.



Download this Hacona Brochure to find out more!
